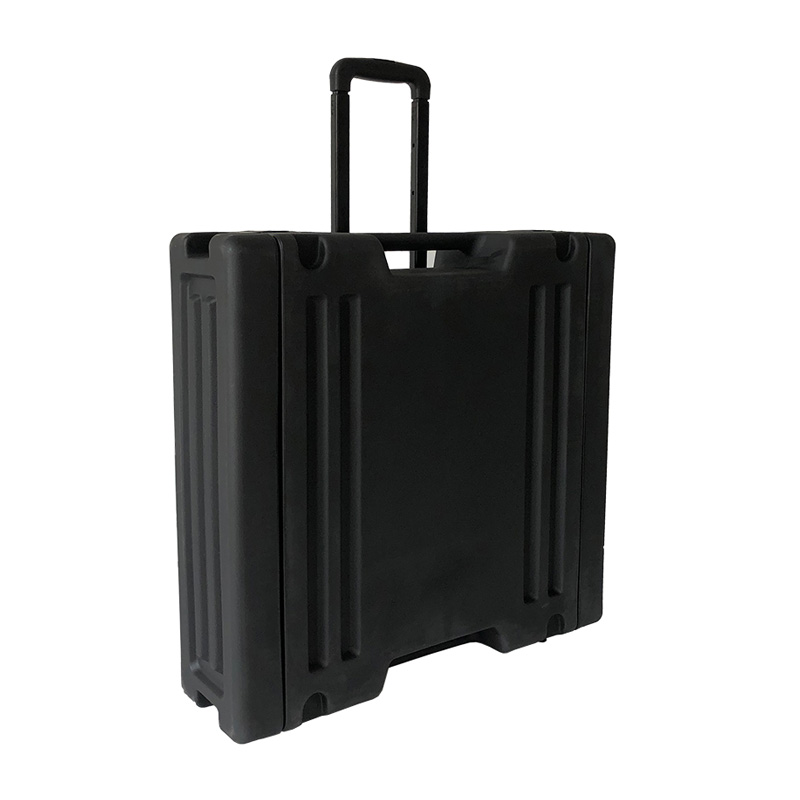

Rack Box for 3D Printing Farms Organizing Multiple Printers

2026-06-23 14:15:32

　　Scaling from a single printer to a 3D printing farm changes the game entirely. Standard IT/AV Rack boxes won't cut it here—you face filament dust, vibrational resonance, heat creep, and constant bed-leveling access.

　　If you are looking at rack boxes (or rack-style shelving) for organizing multiple printers, here is the farm-specific maintenance and setup playbook. Quick-release side panels are actually a lifesaver in this environment, but you have to modify how you use them.

　　Here is the hardened, real-world strategy for rack-mounted 3D printing farms:

　　1. The "Dust Shroud" Modification (Crucial)

　　In an IT rack, side panels keep dust out. In a print farm, they trap heat and filament micro-plastics.

　　The Fix: Do not seal the side panels airtight. Instead, install 120mm PC case fans directly into the side panels (cut blow-holes if needed). Wire them to run at 100% 24/7 pulling air out.

　　Quick-Release Hack: Mount the fans with magnetic quick-connect cables (like pogo-pin connectors) attached to the inside of the panel. When you pop the side panel off for maintenance, the fans disconnect automatically without you fumbling for plugs. Snap the panel back on, and the magnets re-engage the power.

　　2. Vibration Decoupling (The Silent Killer)

　　Printers moving at 200mm/s create harmonic resonance. That resonance travels through the rack box, loosening every quick-release latch over 48 hours.

　　The Maintenance Rule: Check all side-panel latches every morning before the first print.

　　The Upgrade: Replace the stock rubber feet on your printers with Sorbothane hemispheres (durometer 30-50 Shore A). Place these between the printer base and the rack shelf. This absorbs 90% of the high-frequency vibration, meaning your quick-release panels won't rattle themselves half-unlatched during a 12-hour print job.

　　3. Filament Path Rack Integration

　　Do not store filament inside the rack box (heat+humidity=disaster). Run filament from a dry-box on top of the rack, down through the side panels.

　　The Mod: Drill a PTFE-tube pass-through (4mm diameter) into your quick-release side panels.

　　The Pro-Tip: Use a push-to-connect pneumatic fitting (like a PC4-M10) mounted to the panel. When you need to remove the side panel, simply push down on the fitting collar, pull the PTFE tube out, and the panel comes free. Reattaching takes 3 seconds and automatically re-routes your filament path without tangling.

　　4. Thermal Zoning (Top vs. Bottom)

　　Heat rises. The printers on the top 2U of your rack will run 5°C–8°C hotter than the bottom ones, leading to inconsistent layer adhesion.

　　Quick-Panel Strategy: Remove the side panels entirely for the top 3 slots and leave them on for the bottom 3.

　　Why: The bottom printers heat the enclosed space (good for ABS/ASA warpage prevention). The top printers need open airflow to cool their mainboards. Use your quick-release panels as seasonal shutters—on in winter to retain heat, off in summer to prevent thermal runaway.

　　5. Emergency Stop Access (Safety First)

　　In a farm, a single blob of death or thermal event requires immediate access.

　　The Drill: Every printer's power switch and emergency stop must be visible within 2 seconds of popping the side panel.

　　The Rack Layout: Mount your power distribution units (PDUs) and network switches on the back of the rack, but mount the printer control boxes on sliding rack shelves facing the side panel. When you quick-release the side panel, you should have direct, unobstructed access to the printer's USB port and SD card slot without reaching over hot stepper motors.

　　6. The Ultimate Farm Maintenance Schedule

　　Since you have quick-release panels, use them as a visual checklist:

　　Frequency Action Why

　　Every 100 hours Pop all side panels. Vacuum the PSU intake filters with a handheld blower. Filament dust is conductive; it shorts power supplies.

　　Every 500 hours Remove panels completely. Tighten all frame bolts on the rack box itself. Vibration loosens the rack's structural joints, not just the latches.

　　Every 1000 hours Lubricate the quick-release slide latches with graphite powder (not PTFE spray). Dust sticks to wet lubes. Graphite stays dry and keeps the slides buttery.

　　The Farm-Specific "Golden Rule": Label every side panel with the printer serial numbers it covers (e.g., "Panel A - Units 1-3"). In a farm of 12+ printers, panels are interchangeable, but the wiring looms inside (power, USB hubs, filament sensors) are not. If you mix panels, you'll spend an hour tracing cables. Keep them paired, pop them off, service the printers, and snap them back on—total downtime per printer: under 4 minutes.
